@*- GWR SETUP:

https://software.ramsoft.com/apps/6.0.11.11031/GWR-6.0.11.11031_x64.exe

*- Patch-rollup installer for Gateway Router: Installation

https://software.ramsoft.com/apps/6.0.11.11031/PRU-GWR-6.0.11.11031_u202503.exe

Installation setup link[Latest]:

http://software.ramsoft.com/apps/6.0.8.8111/GWR-6.0.8.8111_x64.exe

∙ Complete the setup with required actions.

∙ System Prompts for a reboot. With consent of customer perform a reboot

∙ Open the icon created for RamSoft Gateway Router

∙ Now the Gateway Router 6.0 screen is displayed.

Choose "Activate Gateway Router 6.0" and “Activate Gateway Router 6.0 Online”

∙ Now enter the following license details as per the tracking sheet (Inform Sannith prior  using activation key) .[License Code:6FXXXX , License Password: D7XXXX ]

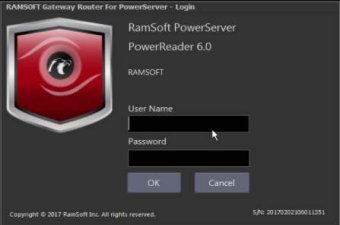

∙ Now it prompts you for User name & Password, enter the following

username: ADMIN, Password: @dm!n4PS

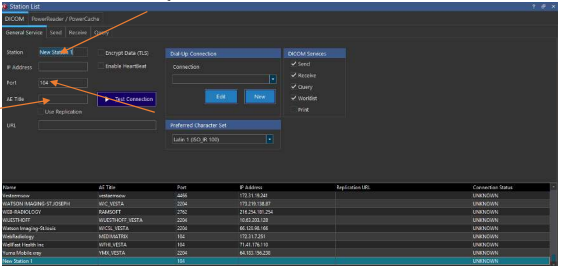

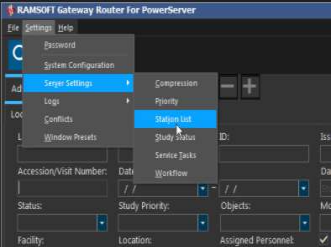

∙ After logging into the Gateway router, click on Settings → Server Settings → Station List.

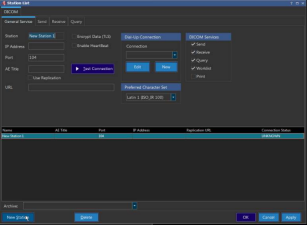

∙ Click on New Station from new window

Station Name : VESTA PACS ( Do not change )

AE TITLE : VTPACS_60 ( Do not change )

Check “USE REPLICATION”

Replication URL: http://66.18.122.9/powerreader/webservice/prisapi.dll/bin

∙ Enter Station Details as shown above:

∙ When clicked on “TEST CONNECTION” message should be “DICOM

Replication successful”.

∙ Setting up a new station for incoming connection from GWR installed at facility.  Station Name: Facility name

IP Address: Public IP Address of the facility.

AE Title: To be unique and must be same at GWR end and Clients PACS destination.

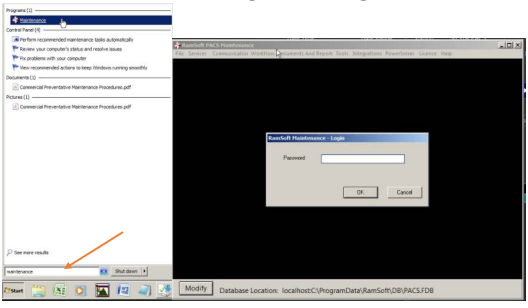

∙ Type-in “Maintenance” in Windows search at destination / facilities computer, when  found open & Enter password as @dmin4M@int

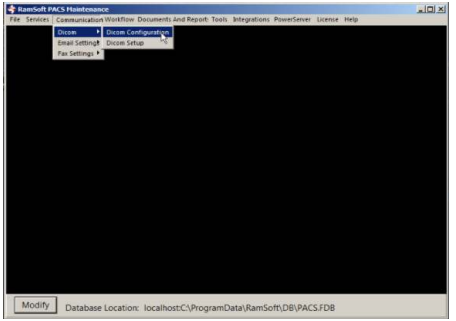

∙ After logging into Maintenance application navigate to Communication → DICOM →  DICOM Configuration.

∙ Enter the Server configuration details as per setup made at VESTA end in Server  Settings 🡪 Station List

Station name: “FACILITY NAME”

Local AE Title: FN_VESTA [This should exactly match the station list created at VESTA end]  PORT: 2204

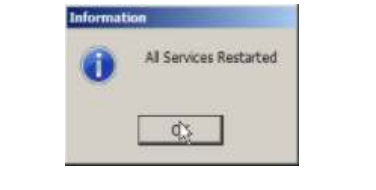

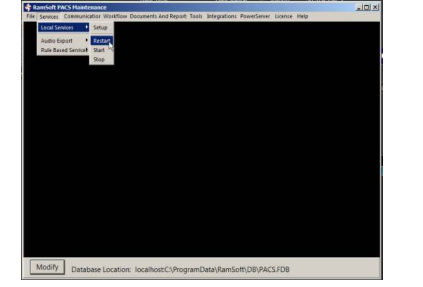

∙ Navigate to Services🡪 Local Services🡪 Restart

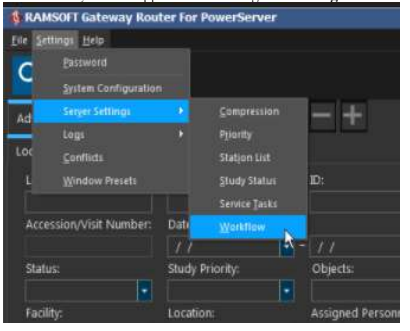

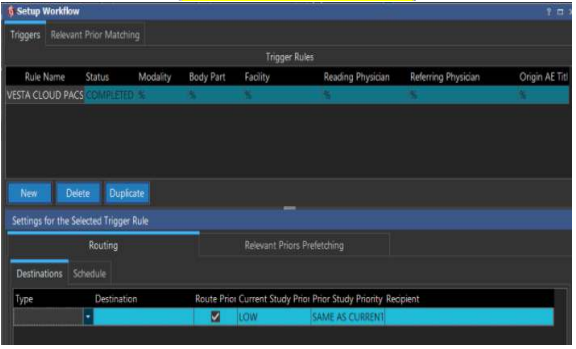

∙ Go back to Gateway Router Application and navigate to Settings🡪 Workflow

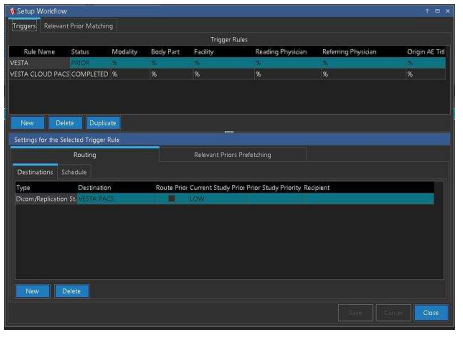

∙ In Workflow select “New” add value “VESTA CLOUD PACS” and status to  “Completed”

Add a new destination select “DICOM/Replication” and select destination “VESTA  PACS” and click save [VESTA CLOUD PACS is case sensitive] .

∙ After saving again add a new Trigger select “New” add rule name “VESTA PRIOR”  and status “PRIOR” and in destinations select type “DICOM/Replication” and

destination “VESTA PACS”
